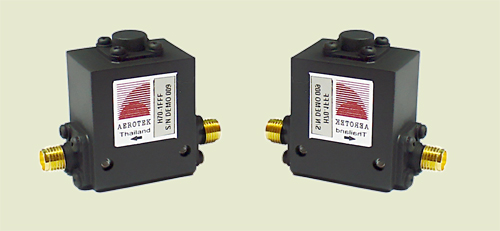

Standard octave plus band Coaxials



Model
Freq. (GHz)
Isolation dB (min)
Ins. Loss dB (max)
VSWR (max)
Operating temp. (?C)
Dimension
Weight (g)
Circulator
Isolator
W x L x T (mm.)
D70-1FFF
D70-1L1FF
0.98-2.05
17
0.6
1.35
10 to +40
70 x 70 x 22
380
D80-1FFF
D80-1L1FF
1.0-2.6
13
1.0
1.60
10 to +40
70 x 70 x 22
380
D81-1FFF
D81-1L1FF
0.9-2.0
13
0.9
1.60
10 to +40
76 x 76x 26
570
D90-1FFF
D90-1L1FF
0.8-2.2
12
0.9
1.70
10 to +40
89 x 89 x 28
650
D91-1FFF
D91-1L1FF
0.86-2.3
12
1.0
1.60
10 to +40
76 x 76x 26
570
D93-1FFF
D93-1L1FF
0.8-2.5
12
1.0
1.70
10 to +40
89 x 89 x 28
660
E80-1FFF
E80-1L1FF
1.0-3.0
13
1.2
1.60
10 to +40
70 x 70 x 22
380
F80-1FFF
F80-1L1FF
1.7-4.2
15
0.9
1.50
0 to +55
50 x 50 x 21
190
F70-1FFF
F70-1L1FF
2.0-4.5
16
0.7
1.40
0 to +55
41 x 42 x 20
120
G80-1FFF
G80-1L1FF
2.0-6.0
13
1.0
1.60
-10 to +60
41 x 42 x 20
120
G81-1FFF
G81-1L1FF
2.4-5.9
15
0.8
1.45
0 to +50
41 x 42 x 20
120
G98-1FFF
G98-1L1FF
3.3-8.35
16
0.8
1.40
0 to +55
32 x 34 x 19
80
H70-1FFF
H70-1L1FF
3.7-8.2
16
0.7
1.40
-30 to +70
25 x 29 x 18
50
H80-1FFF
H80-1L1FF
3.0-9.0
13
1.2
1.60
0 to +50
32 x 34 x 19
80
K70-1FFF
K70-1L1FF
8.0-18.0
16
0.8
1.45
-30 to +70
16 x 21 x 17
26
