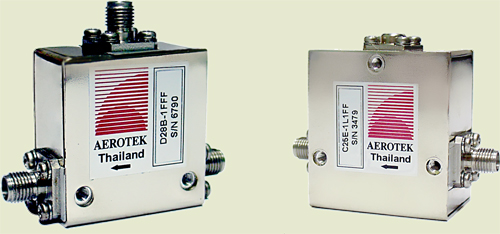

Cellular band Coaxials



Model No.

Frequency (MHz)

Isolation
Min(dB)

Insertion loss
Max (dB)

VSWR (Max)

Operating Temp.
(°C)

Circulator

Power rating
(Watts)

Dimension
( W x L x T) (mm.)

Weight (Grams)

Circulator
Isolator

Peak

Avg.

C25E-1FFF

C25E-1L1FF

880-960

20

0.3

1.25

-30 to +70

500

100

37X40.5X24

150

C39A-1FFF/OPT.6

C39A-1L1FF/OPT.6

925-960

20

0.3

1.25

-30 to +70

500

100

37X40.5X24

150

D24B-1FFF

D24B-1L1FF

1710-1880

20

0.3

1.25

-54 to +85

500

100

32X34X19

90

D52-1FFF

D52-1L1FF

1805-1885

20

0.3

1.25

-54 to +85

500

100

32X34X19

90

D26A-1FFF

D26A-1L1FF

1805-1910

20

0.3

1.25

-54 to +85

500

100

32X34X19

90

D29B-1FFF

D29B-1L1FF

1930-1990

20

0.3

1.25

-54 to +85

500

100

32X34X19

90





* Finished Nicked plated
