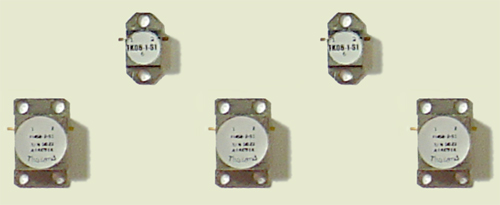

Miniature Drop-In Flange
|
||||||||||
Model |
Freq. (GHz) |
Isolation dB (min) |
Ins. Loss dB (max) |
VSWR (max) |
Operating temp. (°C) |
Dimension |

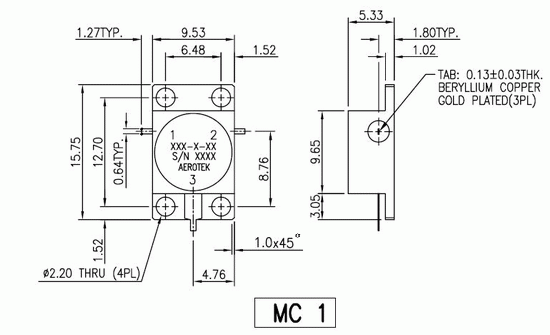

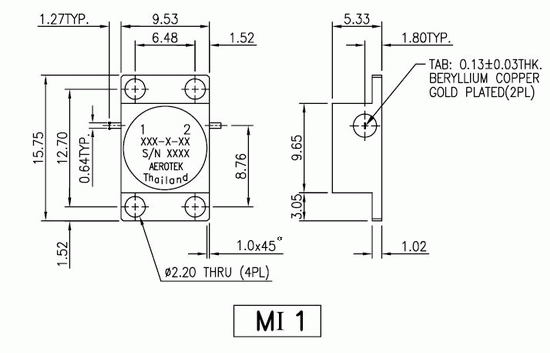

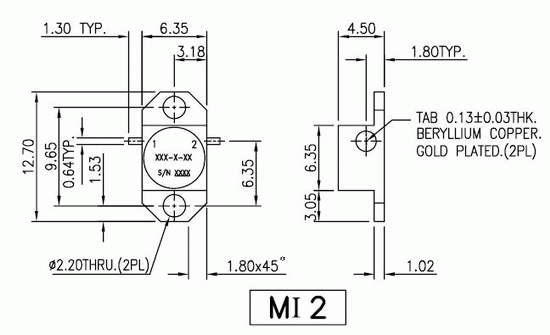

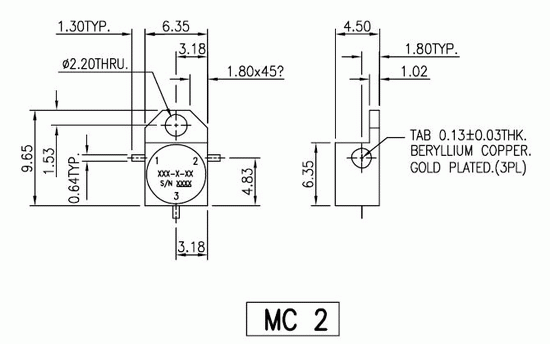

Outline Fig. |
|||
Circulator |
Isolator |
W x L x T (mm.) |
Cir. |
Iso. |
||||||
FF02-2-S |
FF02-2-S1 |
3.6-4.2 |
18 |
0.5 |
1.3 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FG01-2-S |
FG01-2-S1 |
4.2-4.4 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FG02-2-S |
FG02-2-S1 |
4.4-5.0 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FG03-2-S |
FG03-2-S1 |
5.0-6.0 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FH04-2-S |
FH04-2-S1 |
5.8-6.5 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FH05A-2-S |
FH05A-2-S1 |
6.4-7.2 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FH23C-2-S |
FH23C-2-S1 |
7.1-7.9 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FI03A-2-S |
FI03A-2-S1 |
7.8-8.5 |
20 |
0.5 |
1.25 |
-20 to +85 |
9.53x15.75x5.33 |
|||
FI23C-1-S |
FI23C-1-S1 |
9.2-9.7 |
20 |
0.5 |
1.25 |
-20 to +85 |
6.35x12.7x4.5 |
|||
FJ20-1-S |
FJ20-1-S1 |
11.7-12.2 |
20 |
0.5 |
1.25 |
-20 to +85 |
6.35x12.7x4.5 |
|||
FJ30-1-S |
FJ30-1-S1 |
12.7-13.2 |
20 |
0.5 |
1.25 |
-20 to +85 |
6.35x12.7x4.5 |
|||
FK06-1-S |
FK06-1-S1 |
13.7-14.55 |
20 |
0.5 |
1.25 |
-20 to +85 |
6.35x12.7x4.5 |
|||
FK21-1-S |
FK21-1-S1 |
15.5-17.5 |
20 |
0.5 |
1.25 |
-20 to +85 |
6.35x12.7x4.5 |
|||
